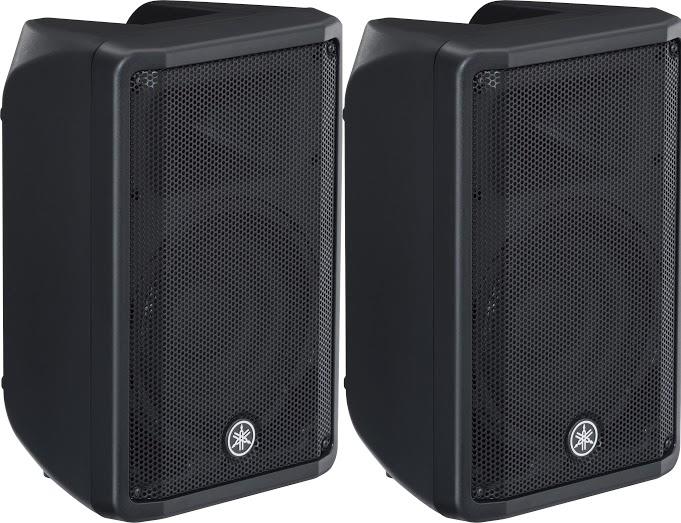

Yamaha DBR10 Powered Speaker
RM 2242 PER UNIT.
PER PAIR : RM 4484
PER PAIR PROMOTION PRICE : RM 3940
SPECIFICATIONS
DBR10 Powered Speaker
- Type: 2-way, Bi-amp powered speaker, Bass-reflex type:
- Frequency range (-10dB): 55Hz - 20kHz
- Nominal coverage, H: 90°, V: 60°
- Components: Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
- HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
- Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)
- Output power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
- Maximum output level (1m; on axis): 131dB SPL
- I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation: Fan cooling, 4 speeds
- Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption: 74W(1/8 Power Consumption), 18W(Idle)
- Cabinet material: Plastic
- Finish: Black
- Handle: Side x 2
- Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket: 35mm (Bottom x 1)
- Dimensions: 308mm (12.1")
- H: 493mm (19.4")
- D: 289mm (11.4")
